1.type:air chuck open and close
open:not on a tire valve stem
close:on tire valve stem air will blow out.
2.material:brass
3.finish:nickelage,chrome
4.hose barb:4mm 6mm 7mm 8mm 10mm
5.More than 30 kinds of air chuck with clip in different type are available

A single clip on connector for standard bore (car, truck, bus, etc) tyre valves.
Open connection for use with all types of tyre inflation gauge.
Select hose stem size from sheet.

OPEN TYPE:the open air chuck employ a check valve which will not seal the opening of the chuck when pressurized,however, it will open the core on the tire valve creating an open passage between the chuck and tire,therefore, an open check air chuck should be used on an air line gauge in order to function properly.

CLOSE TYPE:close type air chuck employ a check valve which seals the chuck,closing the air passage while it is not being used,and when used,it will open the core on the tire valve,allowing the pressure from the hose to be transferred to the tire,when a live air line is used for non-gauged inflation of the tire, a close air chuck should be used.

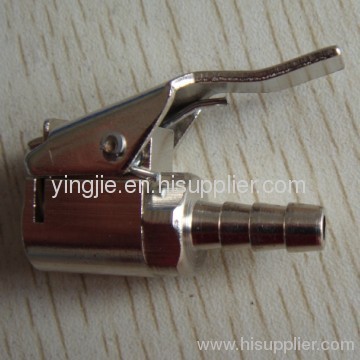

AC106 nickelage picture:

AC108 self color

Ac106 body picture:



part of air chuck:

tire chuck packing:
500pcs/Carton
GW:14.5KG
MEAS:34*23*10CM


Should you have any questions, please do not hesitate to contact us.we will reply ASAP (general in 24 hours).
